Wind Solar Hybrid Controller,Multifunctional Charge Controller,Mppt Boost Charging,Wind Turbine and Solar Power,for Renewable Energy,Wind Turbine and Solar Power W800/S600W-48V

♥ Welcome to my store!❢ This wind-solar hybrid charge controller, an off-grid MPPT wind-solar hybrid charge controller, is designed for small off-grid wind power systems, safely and efficiently charging batteries using both wind turbines and solar panels.❢ Features:1. Comprehensive protection functions against overcharging, over-discharging, and overload;2. Diverse load control methods;3. Output power and time are both adjustable;4. Adaptive to daytime and nighttime conditions.❢ Product Specifications:- Control Algorithm: MPPT- System Rated Voltage: 12V/24V/48V- No-load Current (DC): ≤0.05A- Humidity: 10%~90% non-condensing- Protection Class: IP30- Storage Temperature: -30℃~70℃- Operating Temperature: -20~55℃- Display Method: LCD display- Wind Turbine Three-Stage Charging Method: MPPT charging - Boost charging - Float charging- Photovoltaic Three-Stage Charging Method: CC constant current - Boost charging - Float charging- Battery Charging Method: Lead-acid battery, Ternary lithium battery, Lithium iron phosphate battery, Custom- Display Parameters: Voltage, battery level, current, power, load mode, temperature, etc.❢ Precautions:⚠ Do not connect or disconnect the power charger with wet hands. ⚠Please pay attention to the precautions for different connection methods when connecting. ⚠♥ If you have any questions or concerns, please contact us. We will reply within 24 hours and do our best to assist you.

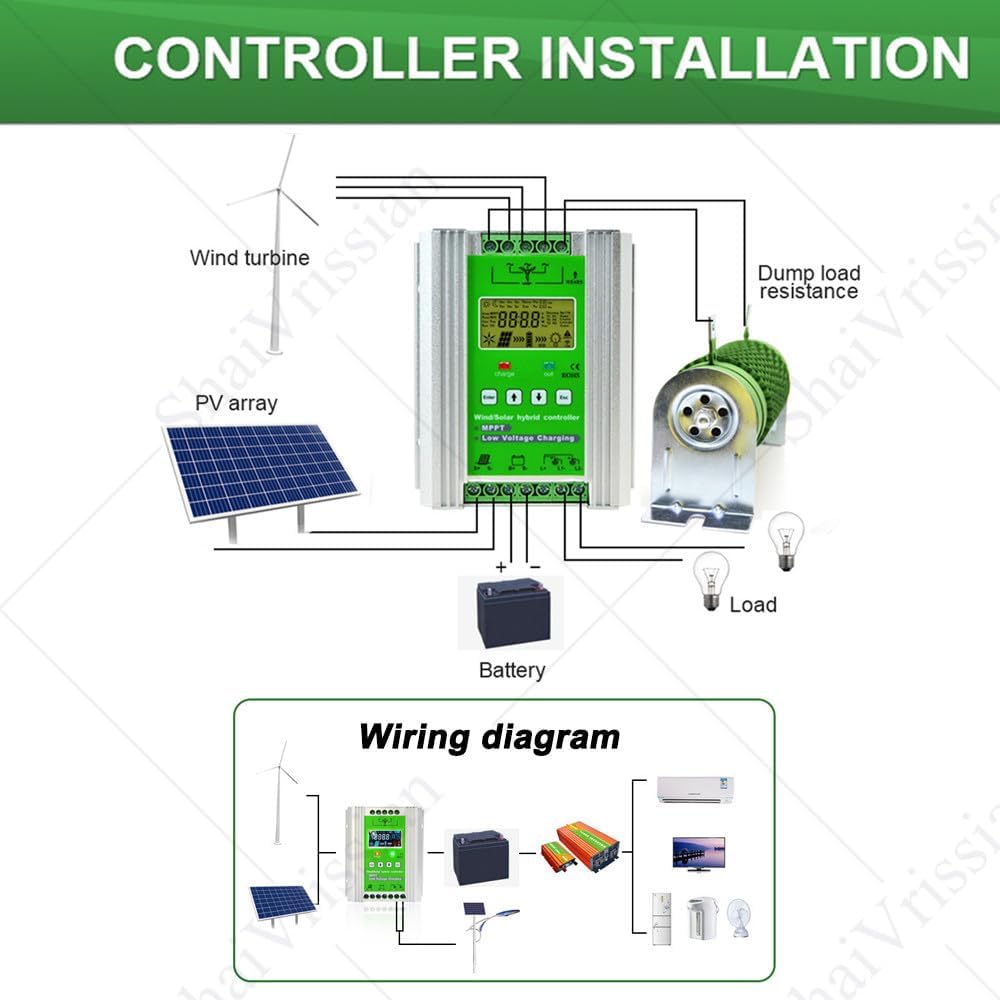

• ❢【Wind Solar Hybrid Charging Controller】Wind-solar hybrid charging controller automatically identifies and is compatible with all 12V, 24V, and 48V batteries, suitable for wind turbines and solar panels, and for wind-solar hybrid power supply modes in homes, boats, and streetlights.
• ❢【MPPT Technology】Wind turbine charging section uses an advanced high-speed processor and MPPT control algorithm, ensuring MPPT charging even at low wind speeds. Solar charging uses series MOS tube PWM charging technology, resulting in lower controller power consumption and a more stable system.

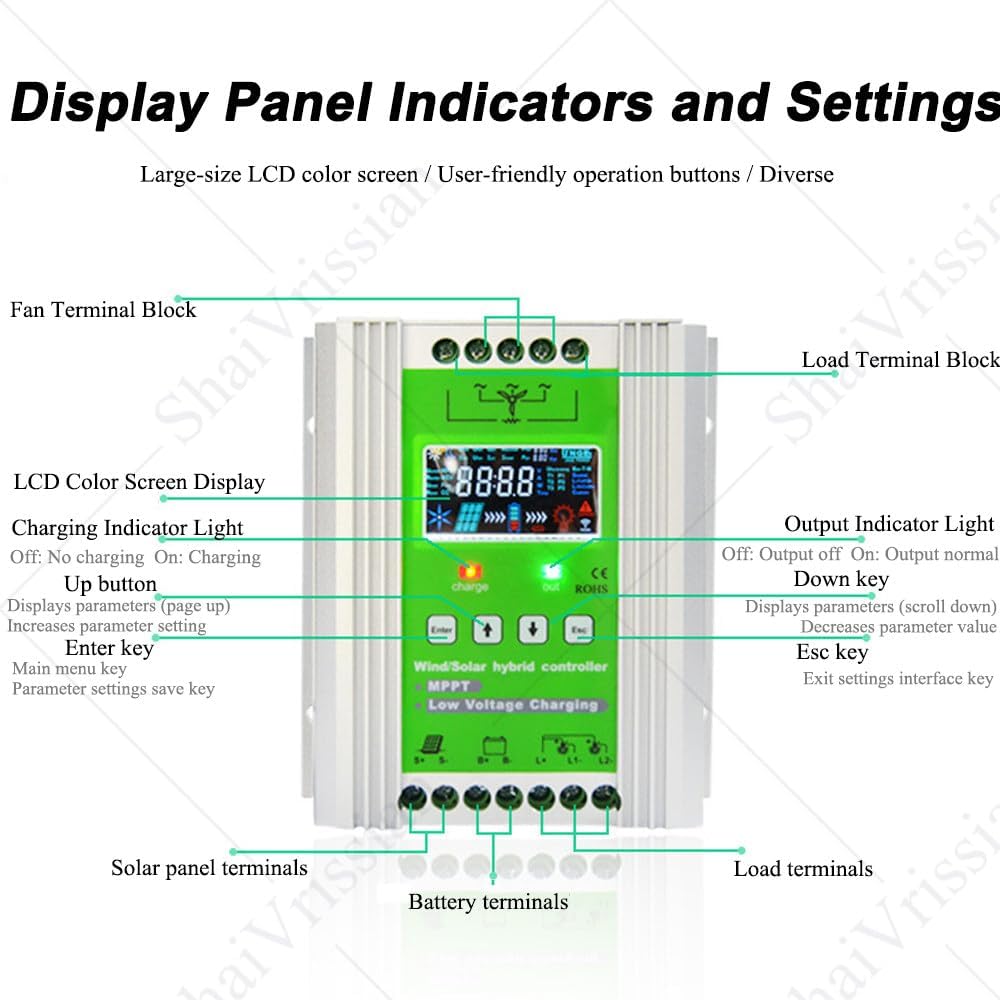

• ❢【Display Screen】Display screen features a color screen design, providing more comprehensive information and a clearer display interface. The 4-button human-machine interface makes manipulation and settings more convenient.
• ❢【Multiple Protection】It features comprehensive protection functions such as overcharge, over-discharge, and overload protection; these complete protection functions ensure higher system reliability.
• ❢【Wide Application】Wind solar hybrid charging controller is suitable for off-grid solar systems, automatically controlling charging and discharging. It can be applied in various fields such as communication base stations, household systems, street lighting systems, and outdoor monitoring.
