SATLINK ST-6986 Satellite TV Receiver DVB-S/S2/T/T2/C Combo Meter MPEG-4 HD H.265 (10bits) Spectrum Spectrum Analyzer Digital Satellite Finder Meter
4.0 (66 items)
Limited Time Sale$283.74 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215132385 | Release Date | 2026/04/12 | List Price | $189.16 | Model Number | 215132385 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

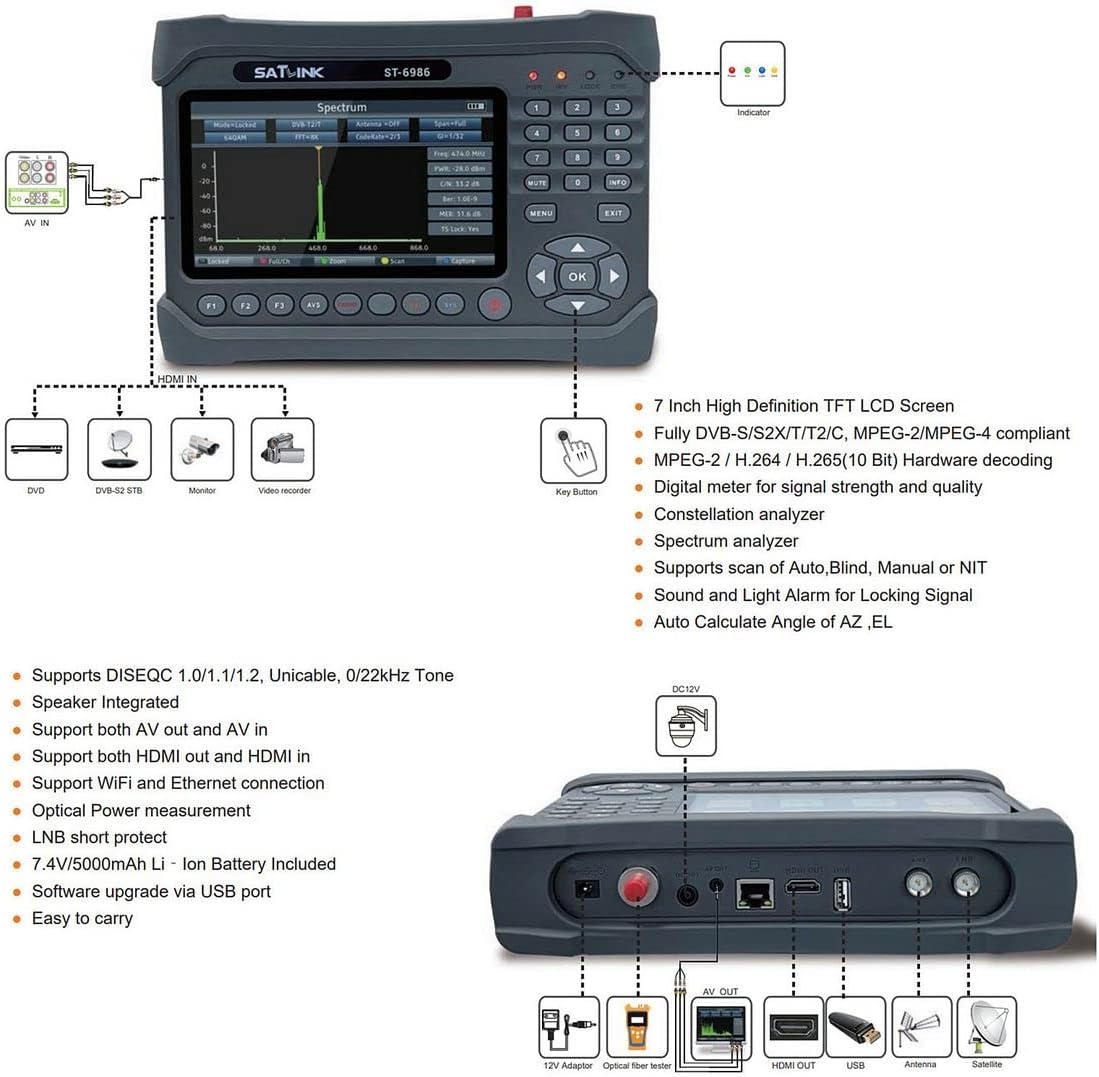

Feature 7 Inch High Definition TFT LCD Screen(1024*600) Fully DVB-S/S2/S2X,T/T2/C, MPEG-2/MPEG-4 compliant MPEG-2 / H.264/H.265 (10 Bit) Hardware decoding Supports Constellation analyzer Supports Spectrum analyzer Supports scan of Auto Blind, Manual, NIT Supports and Light Alarm for Locking Signal Auto Calculate Angle of AZ ,EL Supports DISEQC 1.0/1.1/1.2 ,Unicable, 0/22khz Tone Speaker Integrated Supports both AV out and AV in Supports HDMI IN/OUT out and AV in Supports Wi-Fi and Ethemet connection Optical power measurement LNB short protect 7.4V/5000mAh Li-ion Battery included Software upgrade via USB port Easy to carry Specification Transmission Standards:DVB-S/S2/S2X,DVB-T/T2/C,MPEG-2/H.264/AVC,H.265/HEVC(10 Bit) Satellite Input/Demodulation Connector Type:F Type Input Frequency:950 to 2150 MHz Signal Input Level:-65 to-25 dBm Band Switch Control:22KHz LNB Supply:13V/18V, Imax 400mA Demodulation Type:QPSK,8PSK,16APSK Symbol Rate:2
- ST-6986 is a DVB-S/S2X/T/T2/C and MPEG-2, H.264/AVC,H.265/HEVC (10 Bit) compliant handheld combo meter. With is compact size, light weight, intuitive user's interface, long battery operational hours and rich feature set, the meter provides all functions needed for installation and verification of digital Satellite TV service, attenna signal and cable signal to residential homes or multi-dwelling units. ST-6986 can only support 1080P and cannot support 4K.
- 7 Inch High Definition TFT LCD Screen(1024*600) .Fully DVB-S/S2/S2X,T/T2/C, MPEG-2/MPEG-4 compliant,MPEG-2 / H.264/H.265 (10 Bit) Hardware decod-ing.
- Supports Constellation analyzer. Supports Spectrum analyzer. Supports scan of Auto Blind, Manual ,NIT.Supports and Light Alarm for Locking Signal
- Auto Calculate Angle of AZ ,EL ; Supports DISEQC 1.0/1.1/1.2 ,Unicable, 0/22khz Tone; Speaker Integrated. Stereo pairs of speakers; Supports both AV out and AV in; Supports HDMI IN/OUT out and AV in
- Supports Wi-Fi and Ethernet connection;Optical power measurement;LNB short protect ;7.4V/5000mAh Li-ion Battery included;Software upgrade via USB port; Easy to carry
| UPC | 711691767607 |
|---|---|
| Brand | SatLink |
| Color | Black |
| Voltage | 12 Volts (DC) |
| Aspect Ratio | 16:9 |
| Manufacturer | SATLINK |
| Model Number | ST-6986 |

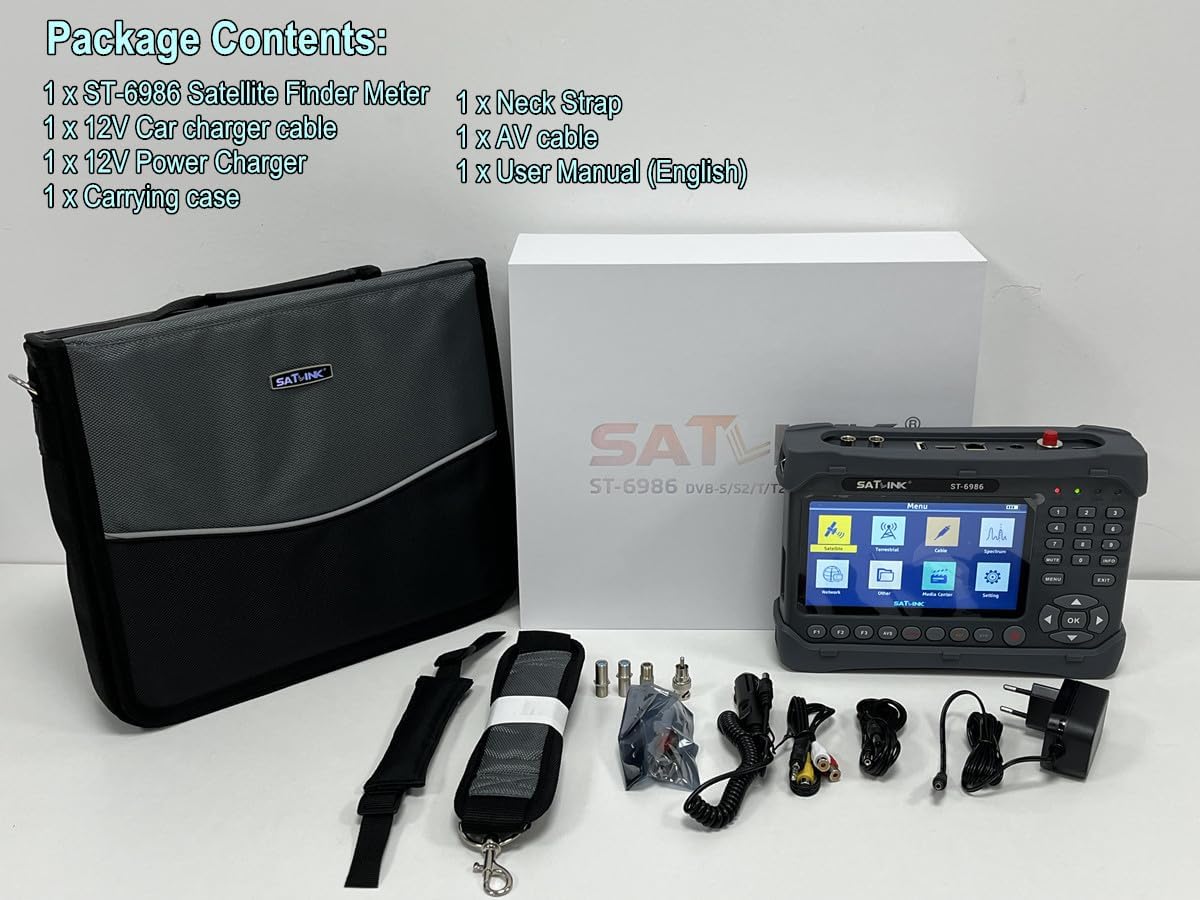

| BuiltIn Media | Satlink ST-6986 Satellite Finder Meter, 12V Car charger cable, 12V Power Charger, Carrying case, Neck Strap, AV cable, User Manual (English) |
| Frequency Range | Satellite Input Frequency: 950 to 2150 MHz, DVB-T/T2/C Input Frequency: 48 to 862 MHz |
| Mfr Part Number | SY-NAST-6986 |
| Total Usb Ports | 1 |
| Antenna Location | installation, verification, and troubleshooting of satellite and cable TV systems |
| Audio Output Mode | Stereo |
| Compatible Devices | Television |
| Supported Standards | DVB-S/S2/S2X, DVB-T/T2/C, MPEG-2, H.264/AVC, H.265/HEVC (10 Bit) |
| Warranty Description | Non |
| Supported Audio Format | Dolby Digital, DTS, AAC, MP3, PCM |
| Connectivity Technology | Ethernet, HDMI, USB, Wi-Fi |
| Total Video In Out Ports | 3 |
| Total Number of HDMI Ports | 1 |
| Number of Component Outputs | 1 |
