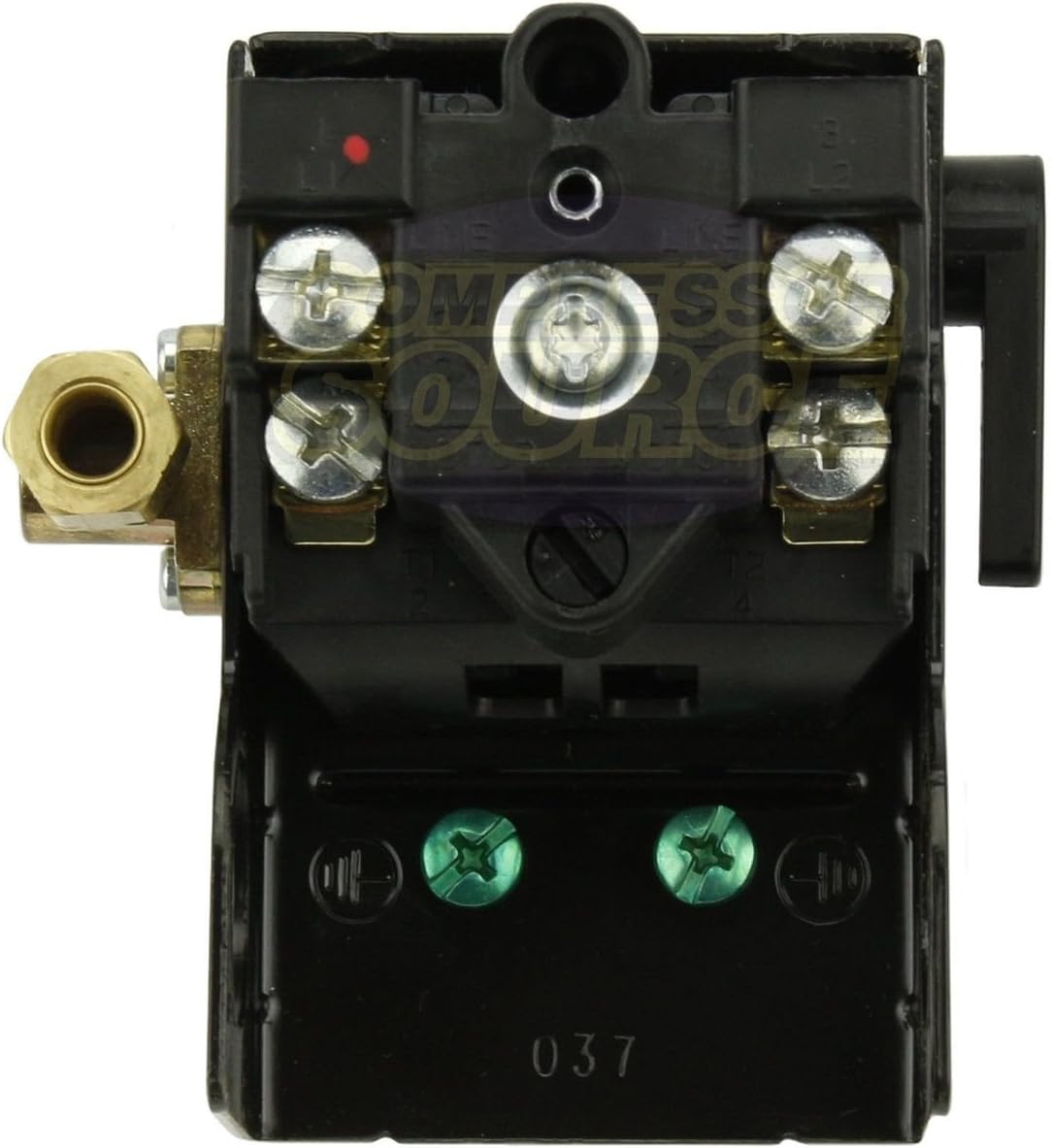

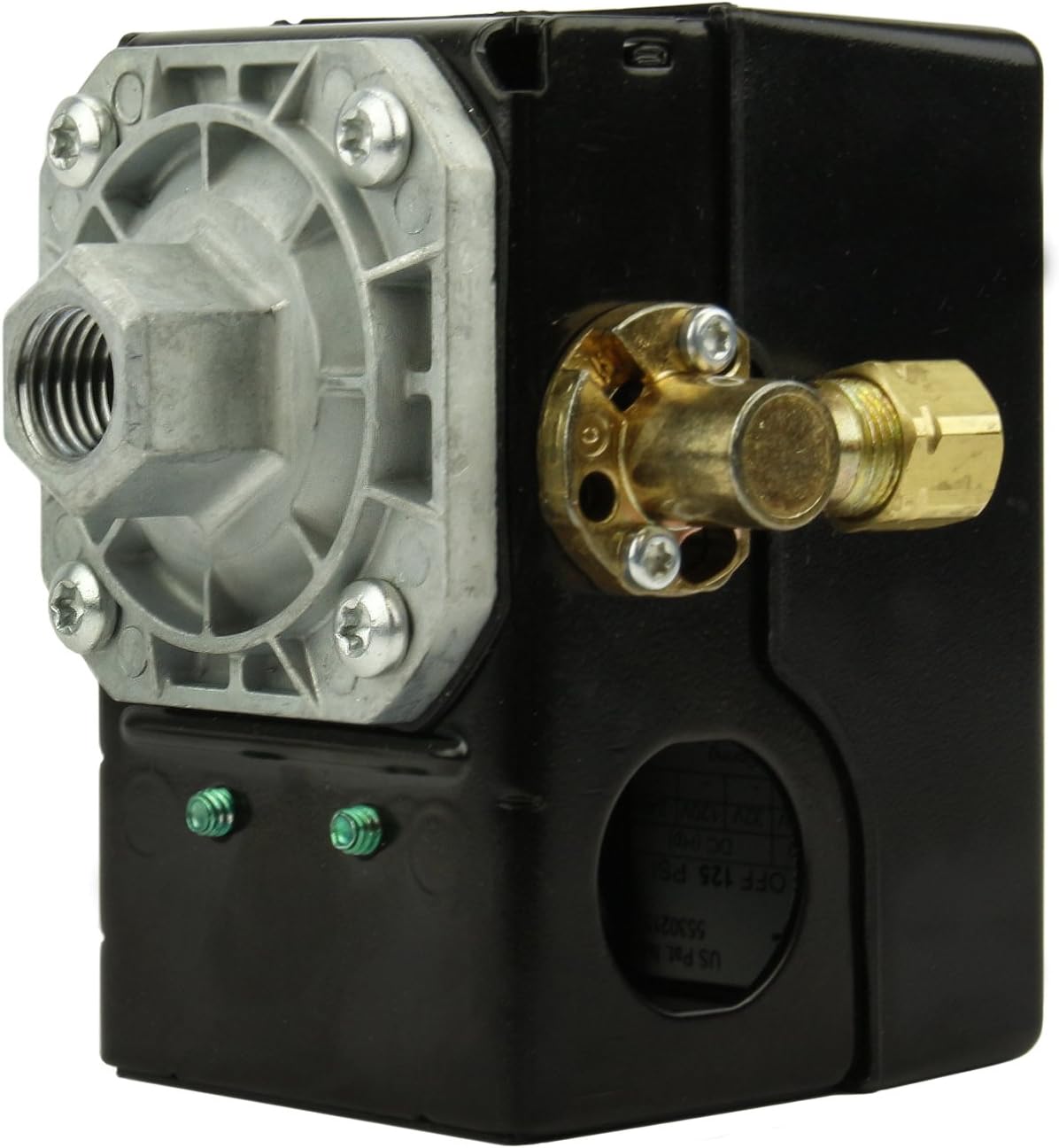

Pressure switch for air compressor made by Furnas / Hubbell 69JF7LY 95-125 single port w/ unloader & on/off lever
4.8 (25 items)
Limited Time Sale$34.19 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216580376 | Release Date | 2026/04/19 | List Price | $22.80 | Model Number | 216580376 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
The 69JF7LY Pressure Switch has a minimum close cut-in of 40, a max open cut-out of 150, and a differential range of 30-40. The 69JF7LY is suitable for a single phase 115V 1-1/2 HP motor, a single phase 230V 2 HP motor, and a 3 phase 230V 3 HP motor. Factory setting is 95-125. Includes on/off lever and unloader.
- Hubbell / Furnas 95-125 PSI air compressor pressure switch control valve with a single 1/4” female NPT air inlet connection port.
- Universal replacement pressure switch
- This switch is equipped with an unloader valve, on/off lever, and a single 1/4” female NPT air inlet port. ( Note: 1/4” NPT measures about 1/2” in diameter.)
- Part Number: 69JF7LY
- Black
| UPC | 783087604407 |
|---|---|
| Color | Black |
| Model | 69JF7LY |
| Wattage | 1500 watts |
| Terminal | Screw |
| Brand Name | Hubbell |
| Unit Count | 1.0 Count |
| Item Weight | 4.54 g |
| Switch Type | Pressure Switch |
| Circuit Type | 1-way |
| Contact Type | Normally Open |
| Manufacturer | hubbell |
| Actuator Type | unloader valve |
| Material Type | Metal |
| Mounting Type | Wall Mount |
| Connector Type | Female Npt |
| Control Method | Touch |
| Operation Mode | ON-OFF |
| Item Dimensions | 4.25 x 3.5 x 4 inches |
| Number of Items | 1 |
| Contact Material | Metal |
| Operating Voltage | 230 Volts |
| Specification Met | ETL |
| Included Components | 1 Pressure Switch |
| Number of Positions | 2 |
| Connectivity Protocol | X-10 |
| International Protection Rating | IP20 |
