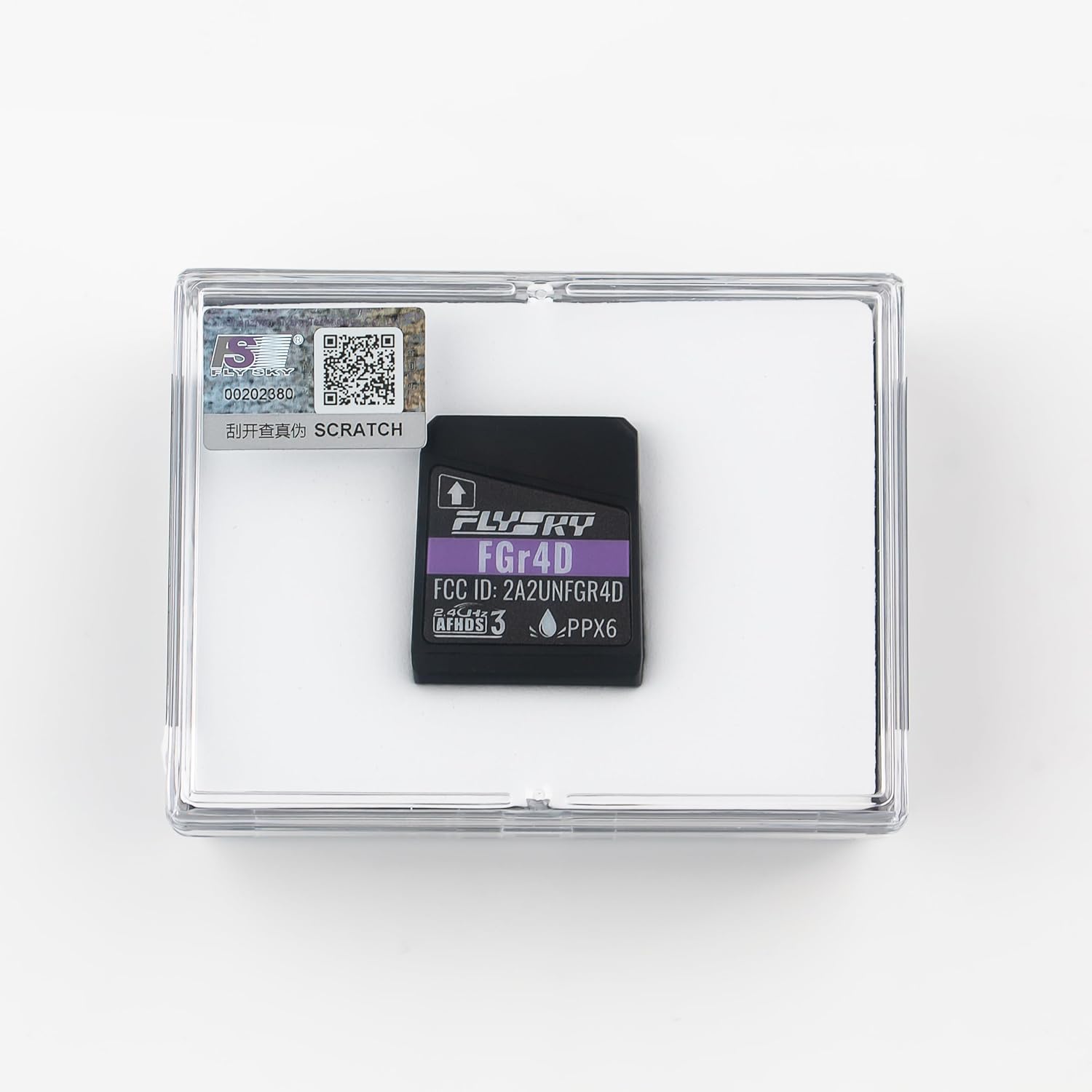

Flysky FGr4D 4CH 2.4GHz AFHDS3 Protocol Bulit-in Antennas Waterproof Receiver for RC Car Boat

Specifications: Product Model: FGr4D Adaptive transmitter:All TransmitterswithAFHDS3Protocol ModelType:CarsorBoats, ect. PWM Channels: 4 RF: 2.4GHz ISM 2.4GProtocol:AFHDS3 Maximum Power: <20dBm (e.i.r.p.) （EU） InputPower: 3.5~9V/DC Working Current: ≤ 50mA/5V DataOutput:PWM/PPM/i-BUS2/S.BUS/i-BUS TemperatureRange:-10℃ ~ +60℃ HumidityRange: 20%~ 95% WaterProof: PPX6 OnlineUpdate: Yes Dimensions: 30.3X25.8X20mm Weight: 7.2g Certification:CE, FCC ID: 2A2UNFGR4D Package included: 1x FGr4D Receiver

• The Flysky FGr4D is a four-channeltwo-way receiverbased on AFHDS3(Third Generation Automatic FrequencyHoppingDigitalSystem)protocol.
• This receiver features dual antennas,PPX6 nano waterproof, compact and light weight design.
• It supports 4 New port function interfaces (New port can be customized with input or output signal types: i-BUS2/S.BUS/i-BUS/PPM).The FGr4D can be used as a PWM converter,adaptable to a model car or model boat
• The receiver has two built-in antennas. In order to ensure the signal quality and avoid the remote control distance affected, the receiver antenna should be perpendicular to the model body when installing the receiver!
• Adaptive transmitter:All TransmitterswithAFHDS3Protocol;Data Output:PWM/PPM/i-BUS2/S.BUS/i-BUS.
