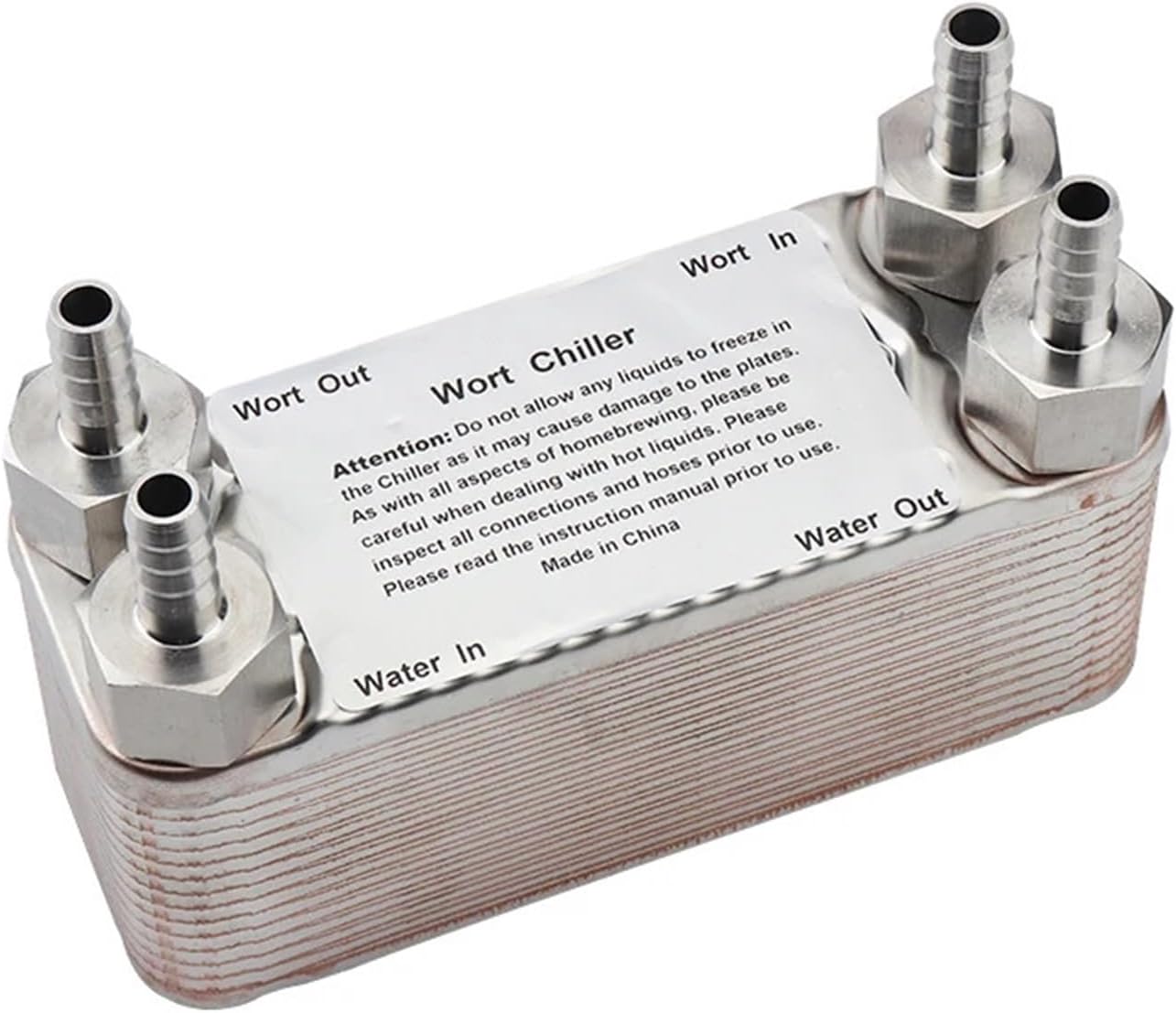

30 Plates Wort Chiller Stainless Plates Brewing Chiller With 3/4 NPT Thread Heat Exchanger With x 4pcs Barb Pump fitting

30 Plates Wort Chiller Stainless Plates Brewing Chiller With 3/4 NPT Thread Heat Exchanger With x 4pcs Barb Pump fittingDescriptions:The New stainless steel wort plate chiller is a highly-efficient device. This chiller is made of 30 plates of 304 stainless steel that have been brazed together with pure copper in an oxygen-free furnace.All the port are with 3/4" Male garden hose thread.304 Stainless Steel Plates with 99.9+% Copper BrazingGood Performance Economy Heat ExchangerRecommended Max Water Flow Rate: 15.5 gpm, Design Temperature: -195°C to +220°C (-319°F to 430°F)Product features:Product Size: 7.5" x 2.9" x 2.92"(191 x 73 x 74.2 mm)Heat Transfer Area/plate:0.012m2(0.14ft2)Thickness of plates: 0.3 mm(0.0118")Max Flow Rate: 66.6L/min(17.6gpm)Design Pressure:1.0 Mpa(145 psi)Test Pressure: 2.0 Mpa(290 psi)Refrigeration Capacity: 1-5 KW(3400-17000 BTU/hourPackage Includes:1 x Wort Chiller (30 plate)4 x Barb Fitting

• High-efficiency heat transfer performance: Plate heat exchanger adopts high-efficiency heat transfer plate design with large heat transfer area and small volume, which can realize high-efficiency heat exchange in a shorter period of time. It is suitable for a variety of industrial and commercial applications, such as HVAC, food processing, chemical industry and other fields.
• Modularized design: The product adopts modularized design, which is convenient for disassembly and cleaning. Users can flexibly adjust the number of plates according to actual needs, thus realizing different heat transfer capacity and flow rate requirements, which greatly improves the flexibility of use and convenience of maintenance.
• Durable materials: the plates are made of high-quality stainless steel or titanium alloy, with excellent corrosion resistance and mechanical strength. The sealing gaskets are made of high-temperature resistant and anti-aging rubber materials to ensure the sealing effect in long-term use.
• Energy saving and environmental protection: By optimizing the fluid channel design, low pressure drop and high heat transfer efficiency are achieved, thus reducing energy consumption. The product complies with environmental standards and helps reduce carbon emissions, making it an ideal choice for green energy saving.
• Widely used scenarios: Whether it is in cooling systems and heating systems in industrial production, or air conditioning systems and water treatment systems in commercial buildings, this plate heat exchanger can provide stable and reliable performance. Its versatility makes it an excellent choice for all types of heat exchange needs.
