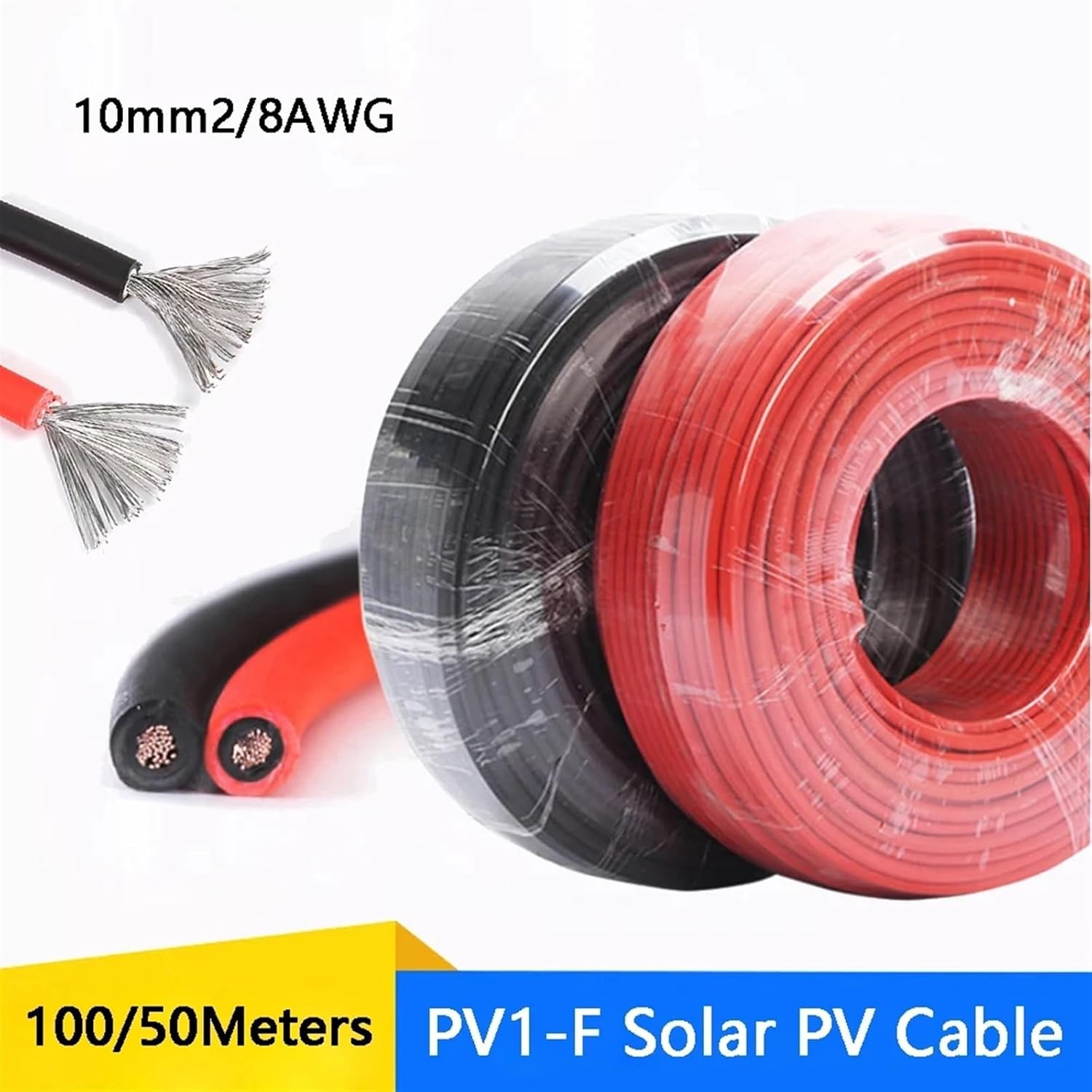

100/50Meters Solar Panel Extension Cable 10mm2/8AWG Black Red Tinned Copper Double Sheathed Wire for Solar Photovoltaic System(100Meters Black)
4.9 (71 items)
Limited Time Sale$376.01 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 212167006 | Release Date | 2026/04/06 | List Price | $250.68 | Model Number | 212167006 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Cat 5 CablesApplied to solar panels for power generation and related components of the wiring, connection,particularly suitable for outdoor .Resistance to sunlight, anti-aging , Using the low smoke halogen-free flame retardant materials, higher grade, more safety.PV1-F Solar PVCableINTRODUCTIONspecifications:10mm²(8AWG)Rated voltage:AC 0.6/1KV,DC1.5KVColor:Red / BlackFeature:Double insulation cover,TUV approvedConductor material:stranded tin-plated ~ 99.95% oxygen-free copperOuter Sheath:Halogen-free low-smoke polyolefin(XLPO)Inner Insulation:Halogen-free low-smoke polyolefin(XLPO)Service life:25 years (-40 +90 )Application:Indoor and outdoor solar installationsFire rating:UL94-V0Seller declaration:This itemisdouble-sheathed cable, which is not as soft assingle-sheathed cable and silicone cable, please pay attention to the distinctionSpecificationModelSpecifications(mm2)Conductors(MM)outer diameter (mm)Conductor outer diameter (mm)20 Conductor DC resistance(Ohm/km)PV1-F 1*1616126/0.410.045.81.24PV1-F 1*101084/0.48.824.91.95PV1-F 1*66 84/0.37.523.63.39PV1-F 1*44 56/0.36.382.95.09PV1-F 1*2.52.549/0.255.632.158.21PV1-F 1*1.51.530/0.254.981.513.7==========Model Number : PV1-F 10mm2Application : OverheadType : InsulatedConductor Type : StrandedConductor Material : CopperInsulation Material : PVCRated voltage : AC 0.6/1KV, DC1.5KVCertification : TUV approvedConductor material : stranded tin-plated ~ 99.95% oxygen-free copperColor : Red / Black
- Cat 5 Cables
| Color | 100Meters Black |
|---|---|
| Model | WCKNKPJKN |
| Brand Name | WCKNKPJKN |
| Cable Type | AUX |
| Model Name | WCKNKPJKN |
| Manufacturer | WCKNKPJKN |
| Connector Type | 20 Pin ATX |
| Outer Material | paper |
| Number of Items | 1 |
| Connector Gender | Female-to-Female |
| Specification Met | UL |
| Compatible Devices | Amplifier |
| Other Special Features of the Product | Braided |
